@kiok46

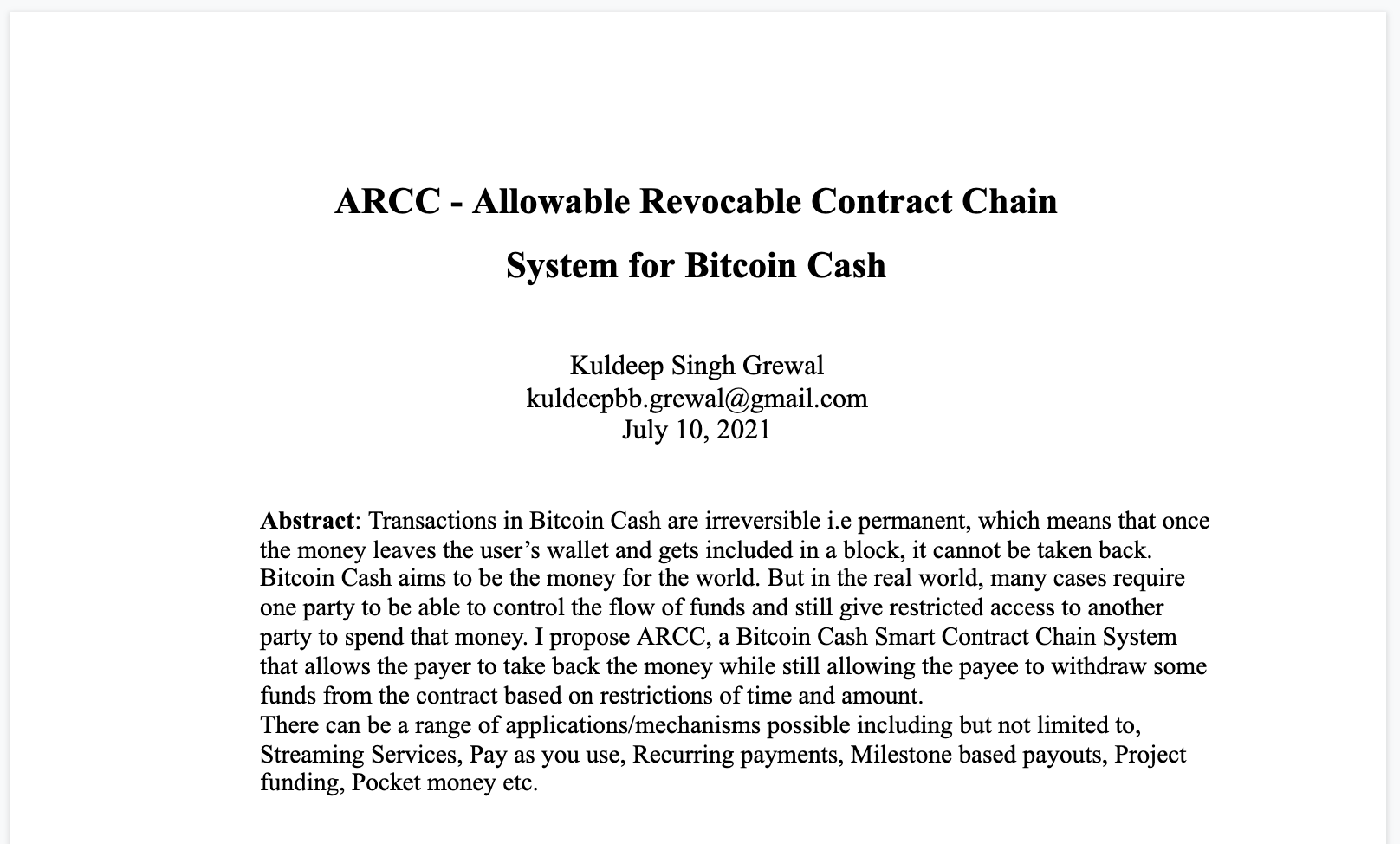

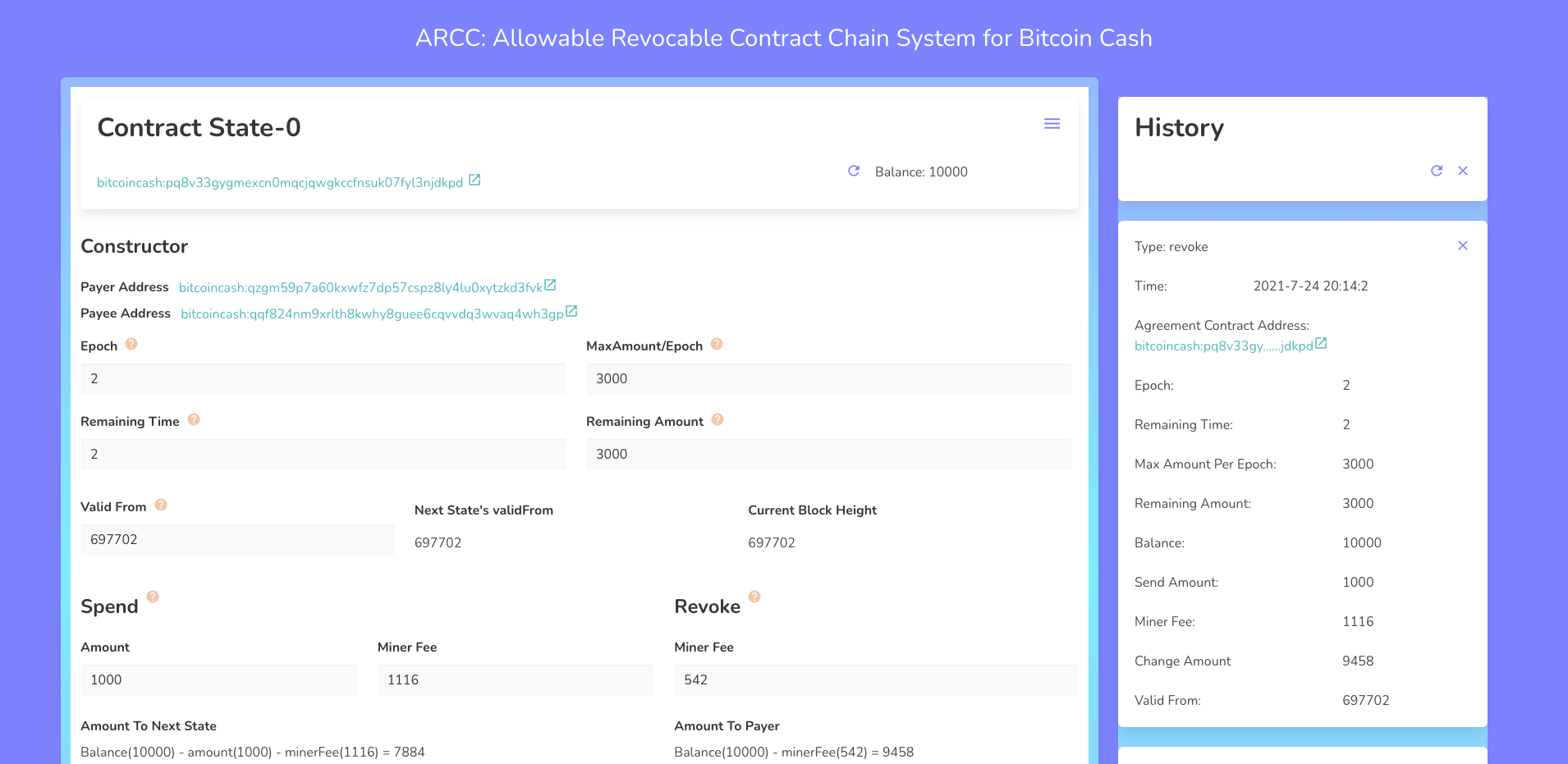

Understanding ARCC, a contract chain system ARCC stands for Allowable Revocable Contract Chain, it provides a way to mimic the pull/revoke mechanism. An ARCC(I pronounce it as, arck/ärk) system lets the payer take back the money while still allowing the payee to withdraw some funds from the contract based on restrictions of time and amount. More details here. https://read.cash/@kiok46/introducing-arcc-11eb12b8 Whitepaper and Contract The Whitepaper and Contract for ARCC could be found here. *(Contract is still being tested.)* https://github.com/kiok46/arcc **Note: This requires prior knowledge of Bitcoin Scripting Language and I assume that you have gone through either the contract or whitepaper. :)** Want to skip and try out the demo? https://github.com/cashkit/arcc-poc How does it work? Let's try to understand by taking an example: There are two parties: Payer: This party is willing to pay the Payee in return for a service. Payee: This party gets paid for the service he provides. They open an application that supports ARCC and lets them create a contract. The Payer and Payee agree that Payee will be allowed to fetch a maximum of 3000 satoshis from the contract every 2 blocks(epoch = 2) ~20 mins. The payee puts a condition that he must get an initial payment beforehand in order to start providing the service, to which Payer happily agrees. They create an ARCC Agreement Contract and both agree to fill in these details, they both provide their public keys, epoch(2 blocks), the max amount the payee can fetch per epoch. The rest of the parameters will automatically be calculated by their application. Payer PubKey: `039e1ba72275d96bb9bdb3b73d5e6367ac950af1f422c0ab66ae0527e56dae8a57` Payee PubKey: `03b44d334e7524ea3e1c081866b7cd44fe6891a20b13d2590ac3651aabb58d23a0` epoch: `2`(4 bytes) maxAmountPerEpoch: `3000`(4 bytes) remainingTime: `2`(4 bytes) remainingAmount: `3000`(4 bytes) validFrom: `698860`(4 bytes, transaction-level locktime i.e current block height) The application provides an address for the contract bitcoincash:prtym5z4xjcjjdu362l0zf8x67yavemuav5pahgxas which Payer must fund. The Payer decides to add 6000 satoshis to the contract. https://explorer.bitcoin.com/bch/address/bitcoincash:prtym5z4xjcjjdu362l0zf8x67yavemuav5pahgxas Now that the contract has been funded, the Payee wants to withdraw some partial amount from the contract, he decides to withdraw 1000 satoshis. The payee types 1000 satoshis and presses the spend/withdraw button on the application and immediately receives the amount. How does it actually work? In order to do so, the application needs to derive the next contract state and its address. For that to happen, it must calculate the remaining spendable amount after the transaction and the time(block height) since the *validFrom* parameter of the spending contract. The application creates a new contract with updated values, in this case, the remaining amount spendable must be 2000. Since no blocks have passed yet, the *validFrom* and *remainingTime* parameters remain the same. **Note: These conditions are enforced by the contract itself, the application only needs to calculate in order to continue deriving the next state and let the Payee withdraw from future states. (See** **demo** **for more clarity).** https://github.com/cashkit/arcc-poc Next State Constructor: Payer PubKey: `039e1ba72275d96bb9bdb3b73d5e6367ac950af1f422c0ab66ae0527e56dae8a57` Payee PubKey: `03b44d334e7524ea3e1c081866b7cd44fe6891a20b13d2590ac3651aabb58d23a0` epoch: `2`(4 bytes) maxAmountPerEpoch: `3000`(4 bytes) remainingTime: `2`(4 bytes) remainingAmount: `2000`(4 bytes) validFrom: `698860`(4 bytes, transaction-level locktime i.e current block height) By adding new values to the constructor, the application is able to derive a new address: bitcoincash:pq4tczau4xv429swf8jejwmln5an3ldagq0ewt2x53 https://explorer.bitcoin.com/bch/address/bitcoincash:pq4tczau4xv429swf8jejwmln5an3ldagq0ewt2x53 The contract executes and two outputs are produced: 1000 satoshis to Payee 3884 satoshis to the next state's address. (1116 paid as miner fee) The Payee has the permission to spend up to 3000 satoshis per epoch. This means that after every 2 blocks the payee can spend 3000 satoshis once again. **Understanding a successful transaction using meep debugger:** Transaction id: 57cb04ec4ac76d7a18e4ece8b03b546457dff13b7514256ed3cbeeeefc58735e https://explorer.bitcoin.com/bch/tx/57cb04ec4ac76d7a18e4ece8b03b546457dff13b7514256ed3cbeeeefc58735e **ScriptSig (Unlocking script):** amount: `e803` (1000, amount that payee is spending) amountToNextState: `2c0f`(3884, amount going to the next state) payeeSig:`eb8a17ffff5b33e96a6ae7bce8286c8d48ba3c1d511ed393e1c9ae5726d9deb204dc9cc2eb9051726bc816f7902c961130870d9396011237ff8519cfdf01eb1141` preimage: `0200....000` version (4-bytes): `02000000` hashPrevouts (32 bytes): `fdcdf2965805bf9ec240b192293c37d5ae9f4cc901b46567016bf4c8af484d35` hashSequence (32 bytes): `18606b350cd8bf565266bc352f0caddcf01e8fa789dd8a15386327cf8cabe198` outpoint (32 bytes + 4 bytes ): `ddedd3fe22c9d4427152a05f7ffa61254911a136d92f8c8e2803d11739726ae7` + `00000000fd3b01` scriptCode:`04eca90a0004b80b0000040200000004b80b000004020000002103b44d334e7524ea3e1c081866b7cd44fe6891a20b13d2590ac3651aabb58d23a021039e1ba72275d96bb9bdb3b73d5e6367ac950af1f422c0ab66ae0527e56dae8a575779009c63587a7cad6d6d6d755167577a519d5779016b7f77820134947f5c7f7701207f547f755b7a55796e7c828c7f755e7aa87bbbad567a815b7902220252798ba569567a815279815a7a81947600a269527952795379009e6354795e79947b757c5a79815379557997947600a063537955799f635c79815f7994537a757c6b7c6c6877766876009f6354797890947b757c6875687800567a8ba56954557a7e547e7b54807e547e7c54807e547a5f7f777e597a5880041976a9147e567aa97e0288ac7e587a58800317a9147e7ba97e01877e7eaa537a886d6d755168` Input's amount being spent (8 bytes) : `7017000000000000`(6000) nSequence (4 bytes): `feffffff`(4294967294) hashOutputs (32 bytes): `00b0ff635eb645691dd2c8335369266fe907f345a84d2aeded8d4c75149f06ea` nLocktime (4 bytes): `eca90a00`(698860) Sighash type (4 bytes): `41000000`(41) Different executable section's id: `1` represents a spend transaction from payee while `0` means that the payer wants to make a revoke-type transaction and transfer all the amount from the contract. scriptCode: `04eca90a0004b80b0000040200000004b80b000004020000002103b44d334e7524ea3e1c081866b7cd44fe6891a20b13d2590ac3651aabb58d23a021039e1ba72275d96bb9bdb3b73d5e6367ac950af1f422c0ab66ae0527e56dae8a575779009c63587a7cad6d6d6d755167577a519d5779016b7f77820134947f5c7f7701207f547f755b7a55796e7c828c7f755e7aa87bbbad567a815b7902220252798ba569567a815279815a7a81947600a269527952795379009e6354795e79947b757c5a79815379557997947600a063537955799f635c79815f7994537a757c6b7c6c6877766876009f6354797890947b757c6875687800567a8ba56954557a7e547e7b54807e547e7c54807e547a5f7f777e597a5880041976a9147e567aa97e0288ac7e587a58800317a9147e7ba97e01877e7eaa537a886d6d755168` The script code in the preimage will later be used with the redeem script to enforce the next contract state and other necessary calculations like remaining time and amount. **ScriptPubKey:** `OP_HASH160 d64dd05534b1293791d2bef124e6d789d6677ceb OP_EQUAL` **RedeemScript:** validFrom: `eca90a00`(698860) remainingAmount: `b80b0000`(3000) remainingTime: `02000000`(2) maxAmountPerEpoch: `b80b0000`(3000) epoch: `02000000`(2) payeePk: `03b44d334e7524ea3e1c081866b7cd44fe6891a20b13d2590ac3651aabb58d23a0` PayerPk:`039e1ba72275d96bb9bdb3b73d5e6367ac950af1f422c0ab66ae0527e56dae8a57` `7 OP_PICK`(Push the section execution id to the top of the stack)`0 OP_NUMEQUAL OP_IF`(True if the Payer made the revoke transaction) `8 OP_ROLL OP_SWAP OP_CHECKSIGVERIFY OP_2DROP OP_2DROP OP_2DROP OP_DROP 1 OP_ELSE`(True if the Payee makes the transaction) `7 OP_ROLL 1 OP_NUMEQUALVERIFY 7 OP_PICK`(Fetch the preimage and push it to the top of the stack) `6b`(107) `OP_SPLIT OP_NIP OP_SIZE`(6f01, 367) `34 OP_SUB OP_SPLIT 12 OP_SPLIT OP_NIP 20 OP_SPLIT 4 OP_SPLIT OP_DROP 11 OP_ROLL 5 OP_PICK OP_2DUP OP_SWAP OP_SIZE OP_1SUB OP_SPLIT OP_DROP 14 OP_ROLL OP_SHA256 OP_ROT OP_CHECKDATASIGVERIFY OP_CHECKSIGVERIFY`(Make sure that the preimage provided in scriptSig is exactly the same as the one used to perform check sig (See here) `6 OP_ROLL OP_BIN2NUM 11 OP_PICK 2202 2 OP_PICK OP_1ADD OP_WITHIN`(Checks the amount's range that Payee is trying to spend) `OP_VERIFY 6 OP_ROLL OP_BIN2NUM 2 OP_PICK OP_BIN2NUM 10 OP_ROLL OP_BIN2NUM OP_SUB OP_DUP 0 OP_GREATERTHANOREQUAL OP_VERIFY`(Verifies that the passed time is greater than equal to 0 by fetching the validFrom from constructor and locktime) `2 OP_PICK 2 OP_PICK 3 OP_PICK 0 OP_NUMNOTEQUAL OP_IF 4 OP_PICK 14 OP_PICK OP_SUB OP_ROT OP_DROP OP_SWAP 10 OP_PICK OP_BIN2NUM 3 OP_PICK 5 OP_PICK OP_MOD OP_SUB OP_DUP 0 OP_GREATERTHAN OP_IF 3 OP_PICK 5 OP_PICK OP_LESSTHAN OP_IF 12 OP_PICK OP_BIN2NUM 15 OP_PICK OP_SUB 3 OP_ROLL OP_DROP OP_SWAP OP_TOALTSTACK OP_SWAP OP_FROMALTSTACK OP_ENDIF OP_NIP OP_DUP OP_ENDIF OP_DUP 0 OP_LESSTHAN OP_IF 4 OP_PICK OP_OVER OP_ABS OP_SUB OP_ROT OP_DROP OP_SWAP OP_ENDIF OP_DROP OP_ENDIF OP_OVER 0 6 OP_ROLL OP_1ADD OP_WITHIN`(Enforces that the new remaining amount is within the allowed range.) `OP_VERIFY 4 5 OP_ROLL` (Process to create the new script code starts)`OP_CAT 4 OP_CAT OP_ROT 4 OP_NUM2BIN OP_CAT 4 OP_CAT OP_SWAP 4 OP_NUM2BIN OP_CAT 4 OP_ROLL 15 OP_SPLIT OP_NIP OP_CAT 9 OP_ROLL 8 OP_NUM2BIN 1976a914 OP_CAT 6 OP_ROLL OP_HASH160 OP_CAT 88ac OP_CAT 8 OP_ROLL 8 OP_NUM2BIN 17a914 OP_CAT OP_ROT OP_HASH160 OP_CAT 87 OP_CAT OP_CAT OP_HASH256 3 OP_ROLL OP_EQUALVERIFY OP_2DROP OP_2DROP OP_DROP 1 OP_ENDIF`  https://read.cash/@pein/bch-covenants-with-spedn-c1170a02#fancy-things Notice the top item of the stack. In the process of inspecting the unlocking script and at the time of executing the contract in the redeem script, the script ended up creating a new script code with values that we expected: `04 + eca90a00(698860) + 04 + d0070000(2000) + 04 + 04 + 020000000 + ....` The only difference from the previous state's scriptCode is the value of the remaining amount which changed from `b80b0000(3000)` to `d0070000(2000).` Feedback? I still have a lot to learn and it's possible that there might be some improvements that can be made. Please open an issue on **POC** or **Whitepaper** Repository. https://github.com/cashkit/arcc-poc https://github.com/kiok46/arcc or Comment here. or Message on telegram group: https://t.me/arccsystem Thanks for reading, I hope it was worth your time! Cheers!

Introducing ARCC ARCC: Allowable Revocable Contract Chain System for Bitcoin Cash An ARCC(I pronounce it as, arck/ärk) system lets the payer take back the money while still allowing the payee to withdraw some funds from the contract based on restrictions of time and amount. *The design makes it possible for the contract to become aware of time and amount and* *provides the ability to partially spend*, making a vast set of applications possible, including but not limited to Streaming Services, Pay as you use, Recurring payments, Milestone-based payouts, Project funding, Pocket money, Parking Tickers, bicycle rides, etc. Journey It's been a couple of months since I started to invest my full time in Bitcoin Cash, I wanted to dive deep into the inner workings of the Bitcoin Script and at the same time, I wanted to see for myself the limits to what is really possible. Watching these awesome people on bitcoincashresearch.org, discussing anything and everything being thrown at them, and still coming up with incredible ideas is and always will be amazing. They made me realize the long and exciting journey that I have to travel! I follow a concept called Ikigai(Ikigai is the art of doing something—and doing it with supreme focus and joy). I love building and discovering things, I do it with what I know best: Software Engineering! Today, I would like to propose a solution to mimic a pull/revoke mechanism on Bitcoin Cash **with a working demo**. https://bitcoincashresearch.org/ Whitepaper Whitepaper and CashScript Contracts: https://github.com/kiok46/arcc Whitepaper https://github.com/kiok46/arcc/blob/main/whitepaper.pdf CashScript Contracts (Testing in progress) https://github.com/kiok46/arcc/tree/main/contracts https://github.com/kiok46/arcc/blob/main/whitepaper.pdf PoC Proof-Of-Concept demo: https://github.com/cashkit/arcc-poc This demo's UX is far more complex than what I imagine a regular application would look like. It's a work in progress. https://github.com/cashkit/arcc-poc Features **Pay to:** An ARCC contract can pay to, P2SH or P2PKH. **Partial Spending ability:** The Payee of an ARCC contract can withdraw any amount with any number of transactions with each amount collectively adding up to the total being less than the max amount allowed per time frame (epoch). **Accumulation:** This version of ARCC gives you the ability to accumulate amounts from all missed time frames(epochs). The Payee must make a single transaction to fetch all the remaining amount from missed epochs and any remaining partial amount from the epoch which had the last transaction. contract https://github.com/kiok46/arcc/blob/main/contracts/arcc_with_accumulation.cash **No Accumulation:** This version of ARCC won't allow the accumulation i.e as soon as the new epoch starts, the amount from the previously missed epoch cannot be fetched. contract https://github.com/kiok46/arcc/blob/main/contracts/arcc_without_accumulation.cash **A window of time:** Epoch > 0, Epoch with a value greater than 0 means that payee can withdraw periodic or partially periodic payments. = 0, *Requires Trust*, Contract is not bound by time but only by amount. This is the case where a concept of slots can be introduced, this concept will completely live on either a backend/frontend/legal layer. Since time is not the bound here, the amount can be withdrawn from the contract by referring to anything measurable in the real world. For example, A bicycle ride. The two parties here are Rider(Payer) and the company(Payee). The company has the policy to charge 20,000 satoshis per Km. Both parties decide to create an ARCC contract with epoch=0 and maxAmountPerEpoch = 20,000. The rider funds the contract with 60,000 satoshis enough for 3 km. After each km, the company can simply withdraw the 20,000 from the contract. It can also account for a case where the total ride is only 2.5 Km. So, the company withdraws 2*20,000 + 10,000 each = 50,000 satoshis. The remaining amount can be taken back by the payee. **Awareness:** Remaining Time: Time after which the next time frame(epoch) starts. Remaining Amount: The contract is aware of the remaining amount that can be spent by the payee during the present time window. **Expiration:** An ARCC contract with expiration can be created to preserve user privacy. Understanding ARCC: More Technical Details. https://read.cash/@kiok46/understanding-arcc-a-contract-chain-system-15475185 See some security issues or simply 'This doesn't work'? Please do share it. Better to lose money now than in production! 😄 Feedback? I still have a lot to learn and it's possible that there might be some improvements that can be made. Please open an issue on POC or Whitepaper Repository. https://github.com/cashkit/arcc-poc https://github.com/kiok46/arcc or Comment here. or Message on telegram group: https://t.me/arccsystem *Special thanks to* ***emergent_reasons*** *and* ***bitjson*** *for improvement suggestions.* Thank you for reading, I hope it was worth your time. Cheers!
